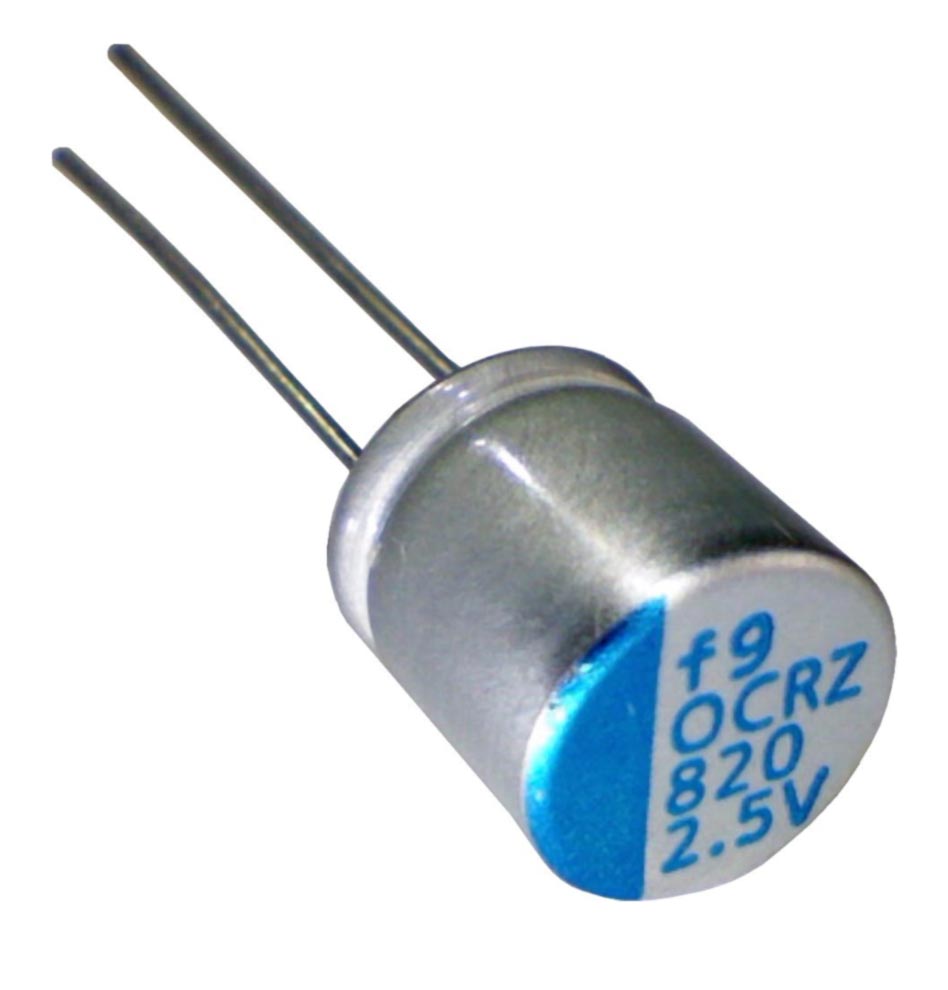

Radial-Leaded Organic Polymer Capacitors

Surge Components radial-leaded organic polymer capacitors provide high-reliability, low-ESR performance in a rugged through-hole package designed for demanding power electronics applications. Combining the advantages of solid polymer technology with the mechanical stability of radial-leaded construction, these capacitors deliver excellent ripple current handling, fast transient response, and long operational life. Ideal for industrial systems, automotive electronics, and power supply designs, Surge axial-leaded polymer capacitors support stable performance in environments requiring durability and electrical efficiency.

* All Capacitors offer AEC-Q200 Equivalent Part Numbers on request.

Filter

Part No	Voltage	Capacitance (µF)	Temperature	Lifetime (Hours)	Diameter	Height	Imped @ 100kHz	Ripple (100kHz)
OCR101M0JBK-0605S	6.3 V	100 µF	-55~+105	2000	6.3 mm	5.5mm	0.4Ω	1810mA
OCR101M1ABK-0606S	10 V	100 µF	-55~+105	2000	6.3 mm	6.5mm	0.45Ω	1700mA
OCR101M1CBK-0611S	16 V	100 µF	-55~+105	2000	6.3 mm	11mm	0.22Ω	2820mA
OCR101M1DBK-0811S	20 V	100 µF	-55~+105	2000	8 mm	11.5mm	0.24Ω	3320mA
OCR101M1DBK-1010S	20 V	100 µF	-55~+105	2000	10 mm	10mm	0.24Ω	3320mA
OCR101M1EBK-1012S	25 V	100 µF	-55~+105	2000	10 mm	12mm	0.2Ω	4320mA
OCR102M0EBK-1010S	2.5 V	1000 µF	-55~+105	2000	10 mm	10mm	0.14Ω	4700mA
OCR122M0GBK-1012S	4 V	1200 µF	-55~+105	2000	10 mm	12mm	0.12Ω	5500mA
OCR151M0GBK-0605S	4 V	150 µF	-55~+105	2000	6.3 mm	5.5mm	0.4Ω	1810mA
OCR151M1DBK-1012S	20 V	150 µF	-55~+105	2000	10 mm	12mm	0.2Ω	4320mA
OCR151M1VBK-1012S	35 V	150 µF	-55~+105	2000	10 mm	12mm	0.26Ω	2700mA
OCR152M0EBK-1012S	2.5 V	1500 µF	-55~+105	2000	10 mm	12mm	0.12Ω	5500mA
OCR181M1CBK-0811S	16 V	180 µF	-55~+105	2000	8 mm	11.5mm	0.16Ω	4360mA
OCR220M1DBK-0605S	20 V	22 µF	-55~+105	2000	6.3 mm	5.5mm	0.6Ω	1450mA
OCR220M1VBK-0811S	35 V	22 µF	-55~+105	2000	8 mm	11.5mm	0.31Ω	2300mA

1
2
3
4
5
6
7
8
9
10
»
Last

Radial-Leaded Organic Polymer Capacitors for High-Reliability Designs

Radial-leaded organic polymer capacitors are engineered for applications that require both advanced electrical performance and robust mechanical mounting. Utilizing a solid conductive polymer electrolyte, these capacitors offer significantly lower equivalent series resistance (ESR) compared to traditional aluminum electrolytic technologies, resulting in improved efficiency, reduced heat generation, and superior ripple current capability. Their axial-leaded through-hole configuration makes them well suited for legacy systems, high-vibration environments, and designs where secure PCB attachment is critical.

Surge Components offers a specialized range of axial-leaded polymer capacitors designed to support high-performance power conversion and filtering applications. These components combine the thermal stability and long-life characteristics of polymer technology with the mechanical strength of axial packaging. Available in multiple capacitance values, voltage ratings, and form factors, they provide flexibility for engineers working across industrial, automotive, and telecommunications sectors.

These capacitors are commonly used in DC-DC converters, industrial power supplies, motor control systems, and high-reliability electronic assemblies where consistent electrical performance is essential. Their low ESR and high ripple current handling make them especially effective in smoothing voltage fluctuations and supporting stable power delivery under dynamic load conditions.

With enhanced durability, excellent thermal performance, and strong vibration resistance, Surge axial-leaded polymer capacitors are designed to perform in harsh operating environments. They offer engineers a dependable alternative where conventional electrolytic capacitors may be limited, combining modern polymer technology with proven axial-leaded construction for long-term reliability and efficiency.
